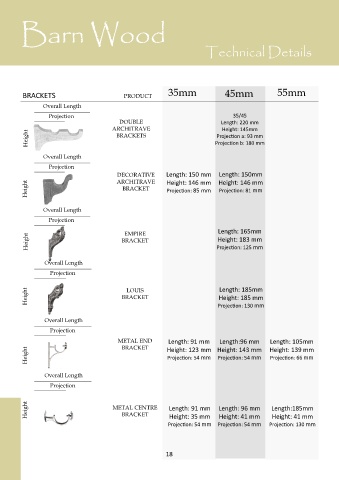

Barn Wood
Technical Details
BRACKETS PRODUCT 35mm 45mm 55mm
Overall Length
Projection 35/45
DOUBLE Length: 220 mm
ARCHITRAVE Height: 145mm
Height BRACKETS Projection b: 180 mm
Projection a: 93 mm
Overall Length
Projection
Length: 150mm
DECORATIVE Length: 150 mm Height: 146 mm
ARCHITRAVE
Height BRACKET Height: 146 mm Projection: 81 mm
Projection: 85 mm
Overall Length
Projection
EMPIRE Length: 165mm
Height BRACKET Projection: 125 mm
Height: 183 mm
Overall Length
Projection
Length: 185mm
LOUIS
Height BRACKET Projection: 130 mm
Height: 185 mm
Overall Length
Projection
METAL END Length: 91 mm Length:96 mm Length: 105mm
BRACKET
Height Height: 123 mm Height: 143 mm Height: 139 mm
Projection: 54 mm
Projection: 66 mm
Projection: 54 mm
Overall Length
Projection
Height METAL CENTRE Length: 91 mm Length: 96 mm Length:185mm
BRACKET
Height: 41 mm
Height: 41 mm
Height: 35 mm
Projection: 54 mm Projection: 54 mm Projection: 130 mm
