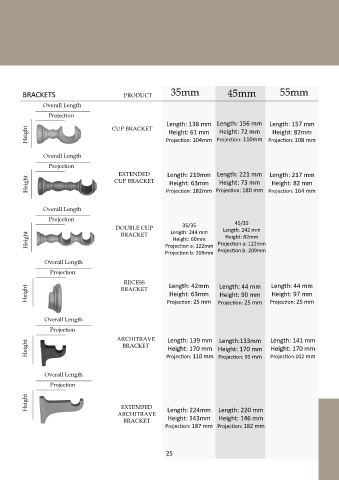

Technical Details

BRACKETS PRODUCT 35mm 45mm 55mm
Overall Length
Projection
Length: 138 mm Length: 156 mm Length: 157 mm
CUP BRACKET
Height Projection: 104mm Projection: 110mm Projection: 108 mm
Height: 72 mm
Height: 61 mm
Height: 82mm
Overall Length

Projection
EXTENDED Length: 219mm Length: 221 mm Length: 217 mm
Height CUP BRACKET Projection: 182mm Projection: 180 mm Projection: 164 mm
Height: 73 mm
Height: 63mm
Height: 82 mm

Overall Length
Projection 45/35
35/35
DOUBLE CUP Length: 244 mm Length: 242 mm
Height BRACKET Projection a: 122mm Projection a: 122mm
Height: 82mm
Height: 60mm
Projection b: 209mm Projection b: 209mm
Overall Length
Projection
RECESS Length: 42mm Length: 44 mm Length: 44 mm
Height BRACKET Projection: 25 mm Projection: 25 mm Projection: 25 mm
Height: 63mm
Height: 97 mm
Height: 90 mm

Overall Length
Projection
ARCHITRAVE Length: 139 mm Length:133mm Length: 141 mm
Height BRACKET Projection: 110 mm Projection: 95 mm Height: 170 mm
Height: 170 mm Height: 170 mm
Projection:102 mm

Overall Length

Projection
Height EXTENDED

ARCHITRAVE Length: 224mm Length: 220 mm
BRACKET Height: 143mm Height: 146 mm
Projection: 187 mm Projection: 182 mm
