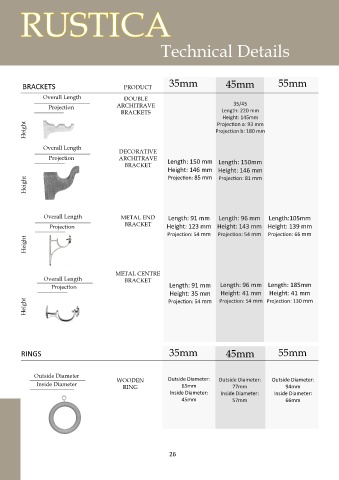

RUSTICA

Technical Details

35mm 45mm 55mm
BRACKETS PRODUCT
Overall Length DOUBLE

Projection ARCHITRAVE 35/45
BRACKETS Length: 220 mm
Height: 145mm
Projection a: 93 mm
Height Projection b: 180 mm

Overall Length
DECORATIVE
Projection ARCHITRAVE
BRACKET Length: 150 mm Length: 150mm
Height: 146 mm Height: 146 mm
Projection: 85 mm
Height Projection: 81 mm

Overall Length METAL END Length: 91 mm Length: 96 mm Length:105mm
Projection BRACKET Height: 123 mm Height: 143 mm Height: 139 mm
Projection: 54 mm Projection: 54 mm Projection: 66 mm
Height

METAL CENTRE
Overall Length BRACKET
Projection Length: 91 mm Length: 96 mm Length: 185mm
Height: 35 mm Height: 41 mm Height: 41 mm
Height Projection: 54 mm Projection: 54 mm Projection: 130 mm

RINGS 35mm 45mm 55mm

Outside Diameter WOODEN Outside Diameter: Outside Diameter: Outside Diameter:
Inside Diameter RING 65mm 77mm 94mm
Inside Diameter: Inside Diameter: Inside Diameter:
45mm 57mm 66mm
