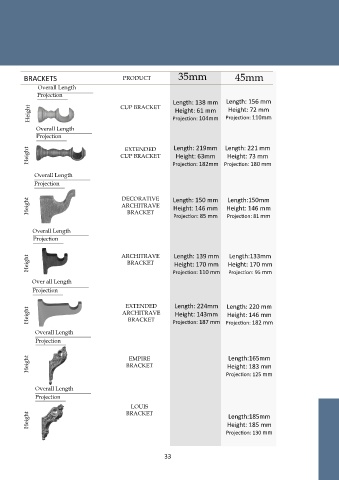

Page 35 - BYRON_BYRON_BROCHURE

35mm
BRACKETS PRODUCT 45mm
Overall Length
Projection
Length: 138 mm Length: 156 mm
CUP BRACKET
Height Projection: 104mm Projection: 110mm
Height: 72 mm
Height: 61 mm
Overall Length
Projection

Length: 219mm
Length: 221 mm
EXTENDED
Height CUP BRACKET Projection: 182mm Projection: 180 mm
Height: 73 mm
Height: 63mm
Overall Length
Projection

DECORATIVE
Length:150mm
Height ARCHITRAVE Length: 150 mm Height: 146 mm
Height: 146 mm
BRACKET
Projection: 81 mm
Projection: 85 mm
Overall Length
Projection

Length: 139 mm
Length:133mm
Height ARCHITRAVE Projection: 110 mm Height: 170 mm
BRACKET
Height: 170 mm
Projection: 95 mm
Over all Length
Projection

EXTENDED Length: 224mm Length: 220 mm
Height ARCHITRAVE Projection: 187 mm Projection: 182 mm
Height: 143mm
Height: 146 mm
BRACKET
Overall Length
Projection

Length:165mm
EMPIRE
Height BRACKET Height: 183 mm
Projection: 125 mm

Overall Length
Projection
LOUIS
BRACKET
Height Height: 185 mm
Length:185mm
Projection: 130 mm
