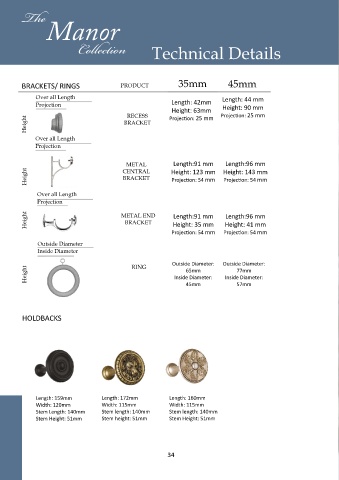

Page 36 - BYRON_BYRON_BROCHURE

The

Manor

Collection Technical Details

35mm 45mm
BRACKETS/ RINGS PRODUCT
Over all Length Length: 44 mm
Projection Length: 42mm Height: 90 mm
Height: 63mm
RECESS Projection: 25 mm Projection: 25 mm
Height BRACKET

Over all Length
Projection

METAL Length:91 mm Length:96 mm
Height CENTRAL Height: 123 mm Height: 143 mm
BRACKET
Projection: 54 mm
Projection: 54 mm
Over all Length
Projection

Height METAL END Length:91 mm Height: 41 mm
Length:96 mm
BRACKET
Height: 35 mm
Projection: 54 mm Projection: 54 mm

Outside Diameter
Inside Diameter

Height RING Outside Diameter: Outside Diameter:
65mm
77mm
Inside Diameter:
Inside Diameter:
45mm
57mm

HOLDBACKS

Length: 159mm Length: 172mm Length: 160mm
Width: 120mm Width: 115mm Width: 115mm
Stem Length: 140mm Stem length: 140mm Stem length: 140mm
Stem Height: 51mm Stem height: 51mm Stem Height: 51mm
