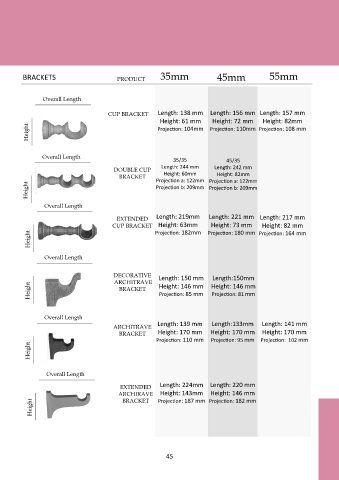

Technical Details
BRACKETS PRODUCT 35mm 45mm 55mm
Overall Length
CUP BRACKET Length: 138 mm Length: 156 mm Length: 157 mm
Height: 61 mm Height: 72 mm Height: 82mm
Height Projection: 104mm Projection: 110mm Projection: 108 mm
Overall Length
35/35 45/35
DOUBLE CUP Length: 244 mm Length: 242 mm
Height: 60mm
Height: 82mm
BRACKET Projection a: 122mm Projection a: 122mm
Height Projection b: 209mm Projection b: 209mm
Overall Length
EXTENDED Length: 219mm Length: 221 mm Length: 217 mm
CUP BRACKET Height: 63mm Height: 73 mm Height: 82 mm
Projection: 182mm
Height Projection: 180 mm Projection: 164 mm
Overall Length
DECORATIVE Length: 150 mm Length:150mm
ARCHITRAVE Height: 146 mm Height: 146 mm
Height BRACKET Projection: 85 mm Projection: 81 mm
Overall Length
ARCHITRAVE Length: 139 mm Length:133mm Length: 141 mm
BRACKET Height: 170 mm Height: 170 mm Height: 170 mm
Projection: 110 mm Projection: 95 mm Projection: 102 mm
Height
Overall Length
EXTENDED Length: 224mm Length: 220 mm
ARCHIRAVE Height: 143mm Height: 146 mm
Projection: 187 mm Projection: 182 mm
BRACKET
Height
